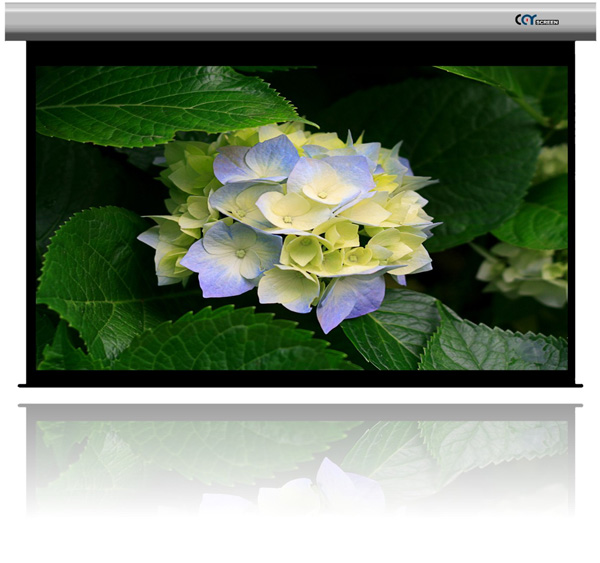

JM-AJ HD Arc electric screen
★ Flexible use of imported high-definition screen, high contrast and high color saturation, and fully restore the true colors.
★ Pull the curtain on both sides with elastic tension system, you can on the screen surface flatness of mediation, but also automatically eliminate general screen is difficult to eliminate the "Li wave", so that the screen surface is flat as a mirror.
★ Tubular motor, built-in wireless remote control, long life, smooth operation, quiet and smooth.

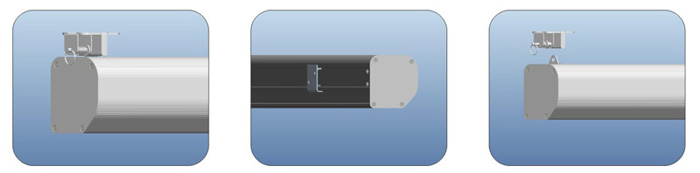

★ Curved aluminum shell, piano paint, a unique three-dimensional modeling, high-grade, fashion.
★ For high-definition display, professional home theater screens, there 16:9,4:3,16:10 optional.
Screen Parameters
Model Specification Projection Wide w Projection High h Black border dimension Expand the total height H Cover Size (Length L * D * width height E) Curtain material Net weight KG On a Under b About c White plastic Fiberglass 4:3 84" 1707 1280 70 45 30 1500 1885*101*105 √ √ 9.5 100" 2032 1524 70 45 40 1745 2230*101*105 √ √ 11 120" 2438 1829 70 45 40 2050 2635*101*105 √ √ 15.3 150" 3048 2286 80 45 50 2520 3265*101*105 √ √ 19 16:9 84" 1860 1046 100 45 30 1295 2038*101*105 √ √ 10 100" 2214 1245 100 45 40 1495 2412*101*105 √ √ 11.5 120" 2657 1494 100 45 40 2910 2855*101*105 √ √ 15.8 150" 3320 1868 120 45 50 2145 3538*101*105 √ √ 20 16:10 100" 2154 1346 100 45 40 1595 2352*101*105 √ √ 11.3 120" 2585 1615 100 45 40 1865 2782*101*105 √ √ 15.8 150" 3230 2020 120 45 50 2295 3448*101*105 √ √ 19.8
Note: The above parameters are subject to change without notice, product actual size.
